Talking from my personal experience, one thing I know about the Intel Core i5 2400 processor is that it’s an energy-efficient processor. And it delivers quick performance with its high-performance built-in graphics and media features.
In this article, I will provide you with the key things you need to know about the processor.
- Clock Speed
- Cache Size
- Thermal Design Power
- Socket Type
- What Is Its Lithography?
- What Is Its Turbo Boost Frequency?
- What Is The Processor's Maximum Memory Support?
- What Is The Processor's Maximum Memory Bandwidth?
- What Is The Processor's Maximum Number Of PCI Express Lanes?
- Does The Processor Support Overclocking, Any Extra Features?
- Is The Processor Good For Gaming?
- Image Gallery – Is Intel Core i5 2400 Good For Gaming?

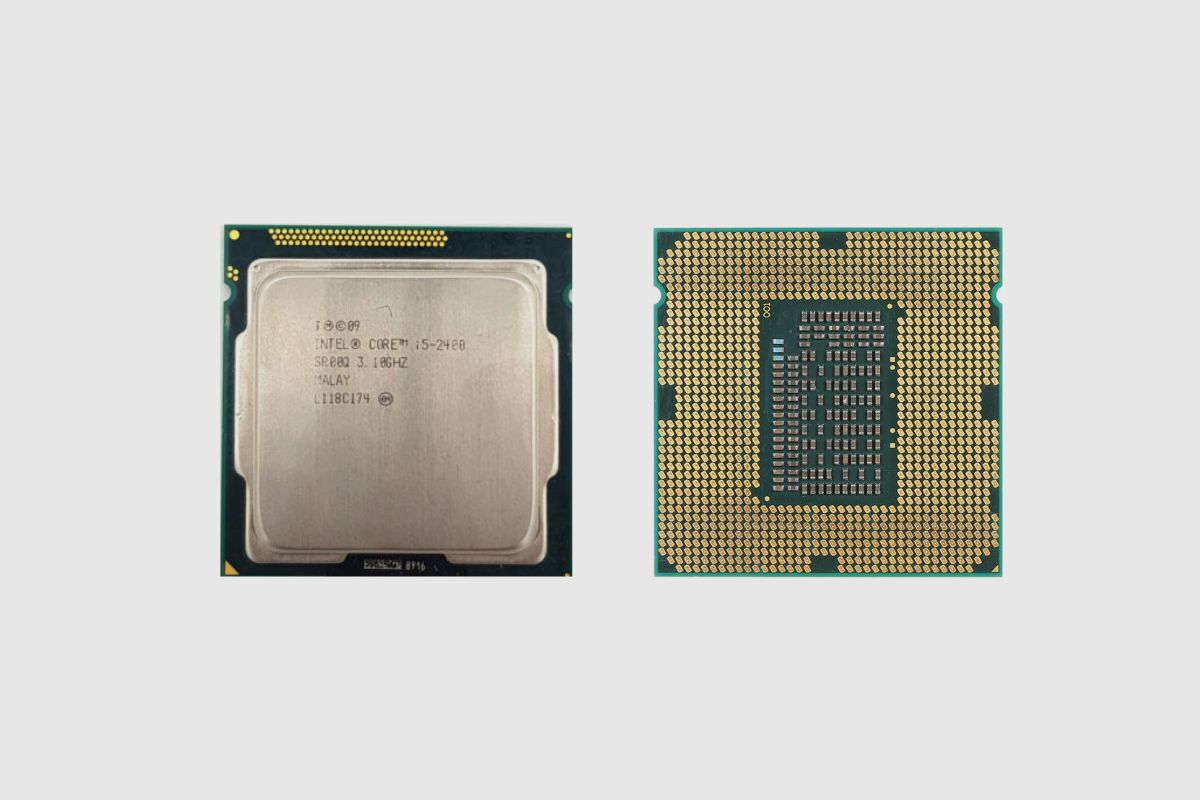

The Intel Core i5 2400 has four processing cores with four threads, running at a clock speed of 3.10 GHz.
The cache size means the amount of main memory data a processor can hold. The Intel Core i5 2400 processor features a 6 MB cache size that is dynamically allocated to each processor core.
Thermal Design Power
The Thermal design power is the maximum amount of heat generated by a processor that the cooling system is designed to dissipate under any workload. And it is measured in Watts. The Intel Core i5 2400 processor has a thermal design power of 95 Watts.

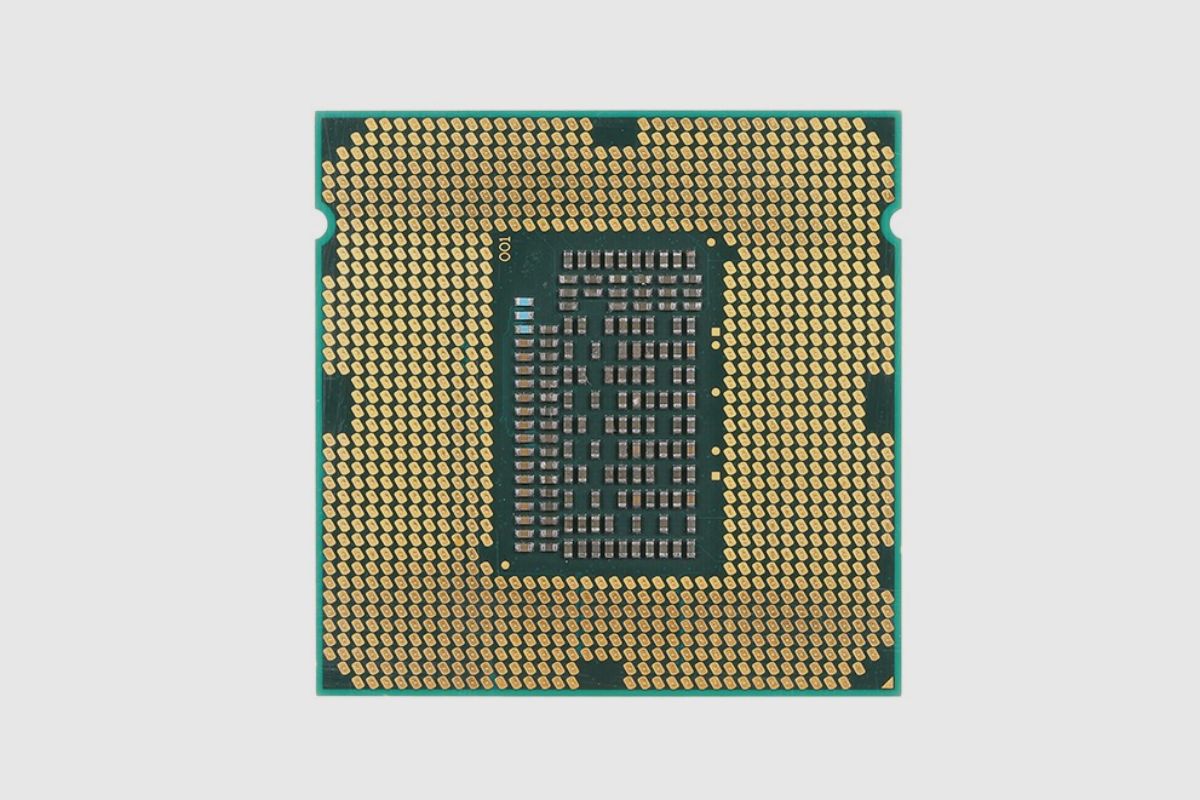

The socket type is the distinct mount used only for the processor on the motherboard to ensure correct chip insertion. The socket helps facilitate access and prevent damage when a unit is inserted or removed. It also helps to prevent CPU movement and is designed to help secure heat sink placement above the processor.
The Intel Core i5 2400 processor utilises the LGA 1155 socket.
What Is Its Lithography?
A processor’s lithography refers to how tightly the transistors inside the processor are packed. The lower the distance between two transistors, the faster electrons can travel between them and the less energy wasted in transit. The difference in speed and power consumption depends on the processor’s lithography, which loosely correlates to the size of the transistors within the chip.
The Core i5 2400 processor has chip lithography of 32 nm manufacturing technology.
What Is Its Turbo Boost Frequency?
The Turbo frequency for the Core i5 2400 processor can maximum go up to 3.4 GHz. The turbo boost helps extend the processor’s frequency level above the rated frequency to achieve a higher processing power.
What Is The Processor’s Maximum Memory Support?
The processor’s maximum memory support is short-term memory, where data can be stored when the processor needs it. The Core i5 2400 processor has maximum memory support of 32 GB of DDR3 RAM available.

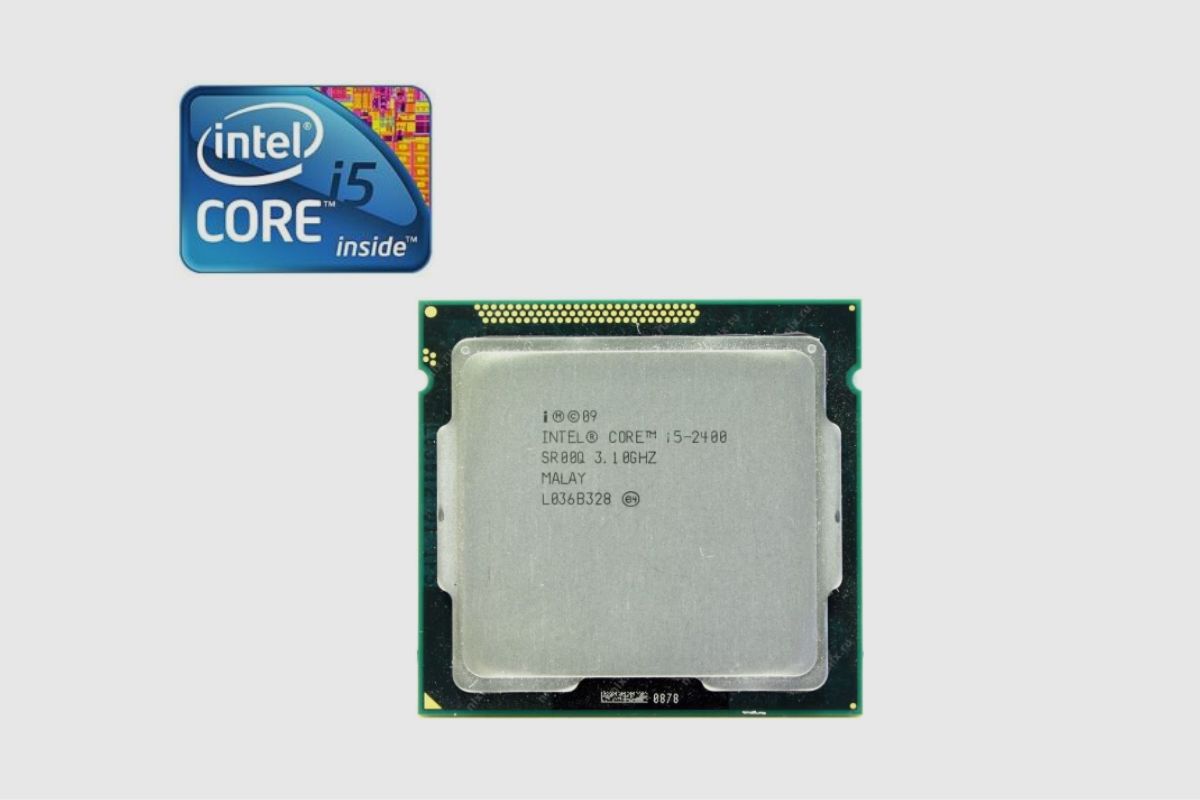

What Is The Processor’s Maximum Memory Bandwidth?
The maximum memory bandwidth is the maximum rate at which data can be read from or stored into a semiconductor memory by the processor. It is measured in GB/s.
The Core i5 2400 processor has a maximum memory bandwidth of 21 GB/s.
What Is The Processor’s Maximum Number Of PCI Express Lanes?
The PCI Express lanes are the physical links between supported devices and the processor. The lanes consist of two pairs of copper wires known as traces that run through the motherboard printed circuit board (PCB). The traces connect enabled devices to either the processor or motherboard chipset.
The Core i5 2400 processor uses a PCI-Express Version 2 connection that consists of 16 lanes.
Does The Processor Support Overclocking, Any Extra Features?
Overclocking simply means increasing the clock rate of your processor to make it run at a higher speed than it was designed for. The Core i5 2400 processor can only be overclocked at 400MHz Turbo. That is a maximum of 3.8 GHz on one core, 3.7GHz with two active cores, 3.6GHz with three active cores, and 3.5GHz with all four active cores.
The Core i5 2400 processor also has integrated graphics; you do not need to buy a separate graphics card. Its GPU has a higher clock speed of 850 MHz. The processor is also the DirectX, used in games for better graphics.
You can get a used Core i5 2400 processor for less than $50. At the same time, a new one would cost you an average of $75.

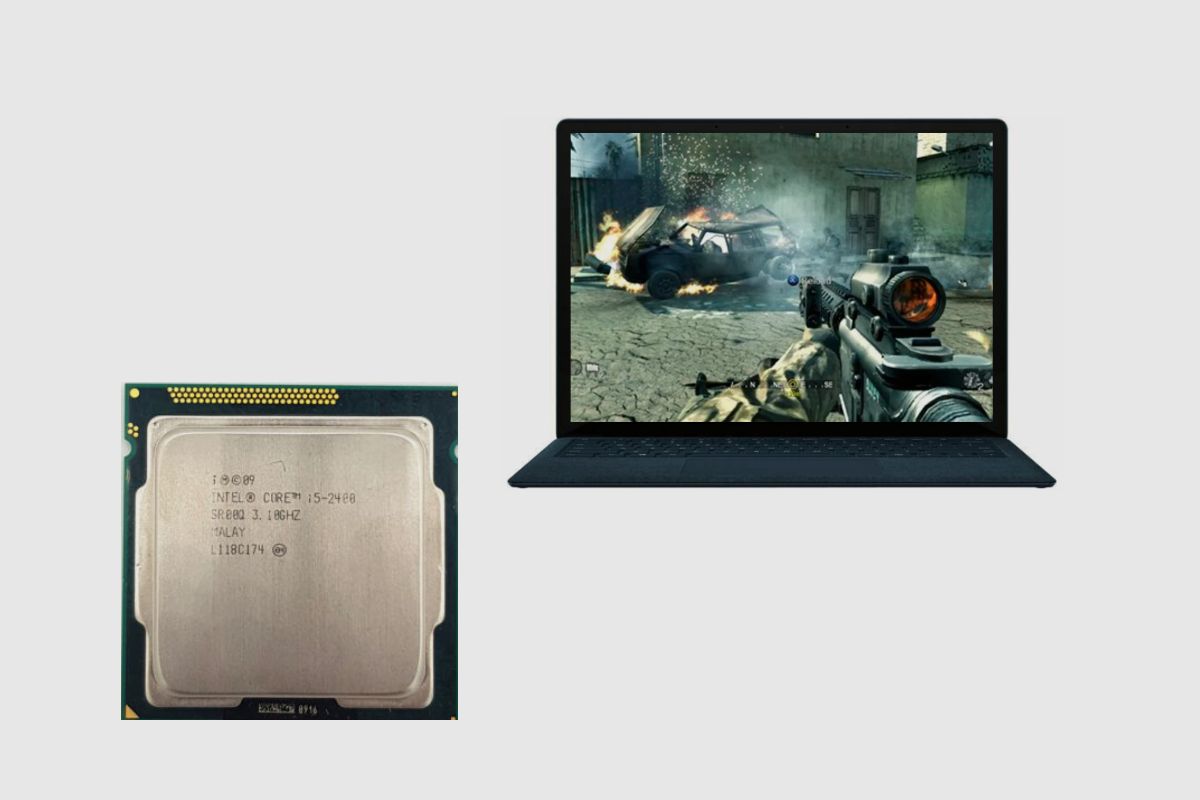

Is The Processor Good For Gaming?
With the great graphics processor that the Core i5 2400 processor possesses, it is good for gaming but might not be able to play some games unless at lowered settings. But you are guaranteed to have a great graphical experience.
The Core i5 2400 processor is relatively fast and power-efficient, faster than some Core i7 processors. It might not be the best processor for gaming, but you will still have an awesome gaming experience with it. It is surprising to see such performance and overclock ability from what is symbolised to be a low-end processor.
